BIMAC  EXPANDING

Bimac Expanding
Bimac Expanding

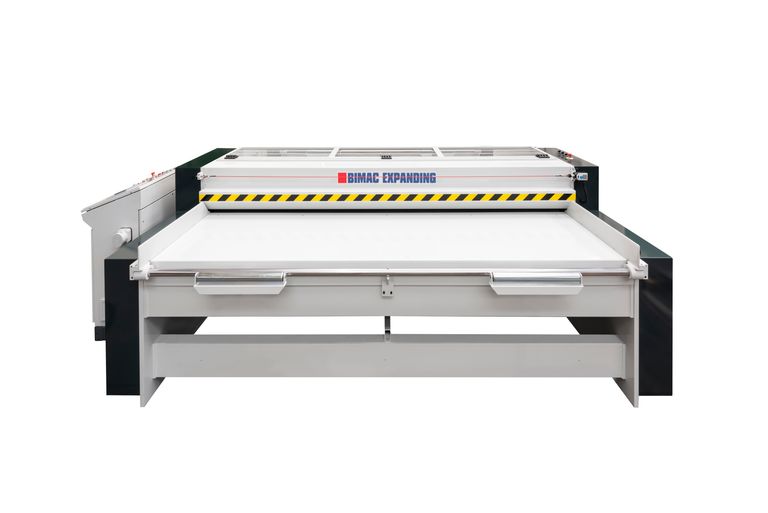

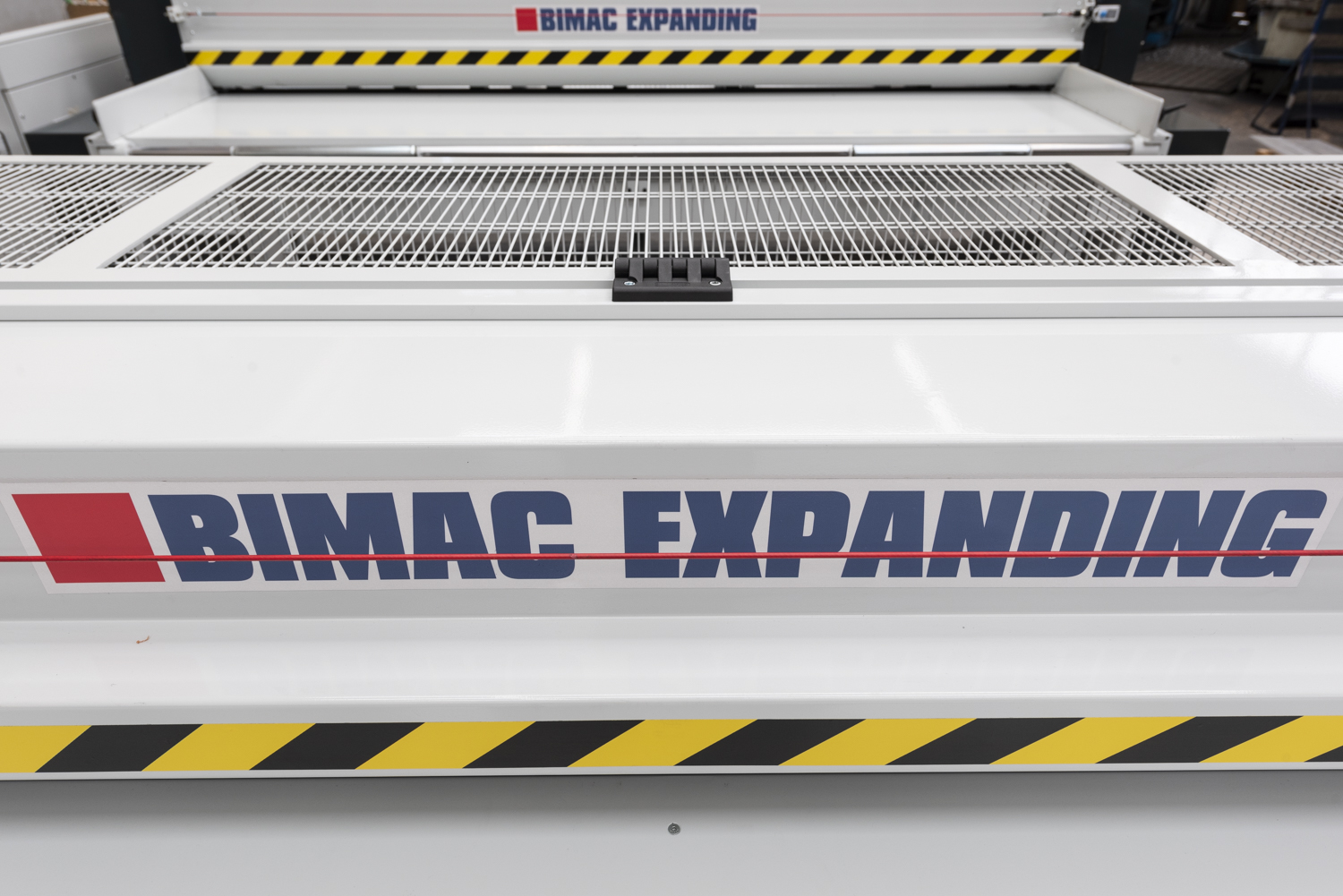

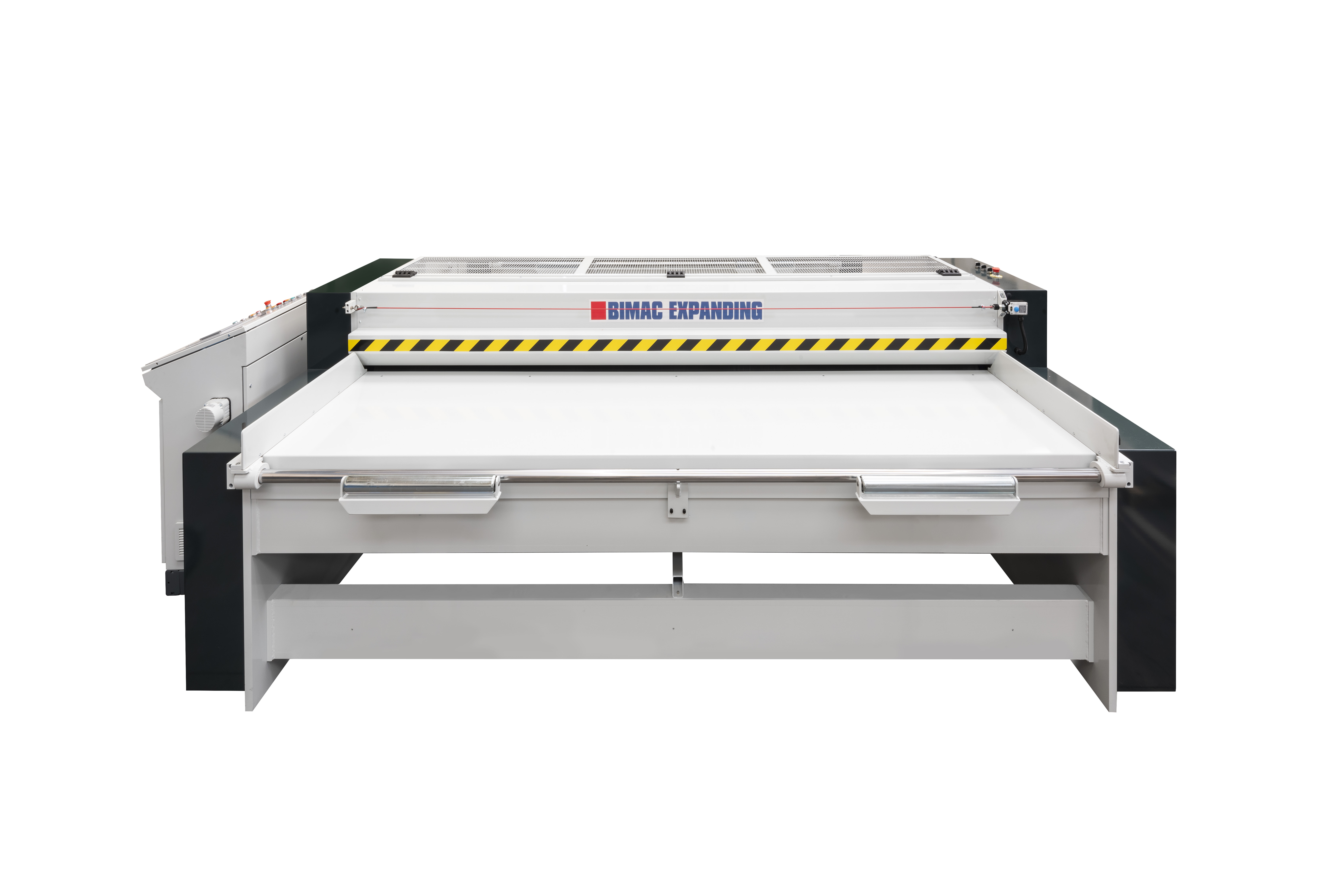

Slitter-Creaser Bimac Expanding is a particularly suitable machine for creasing and slotting of cardboard sheets from 1 up to 16 mm of thickness.

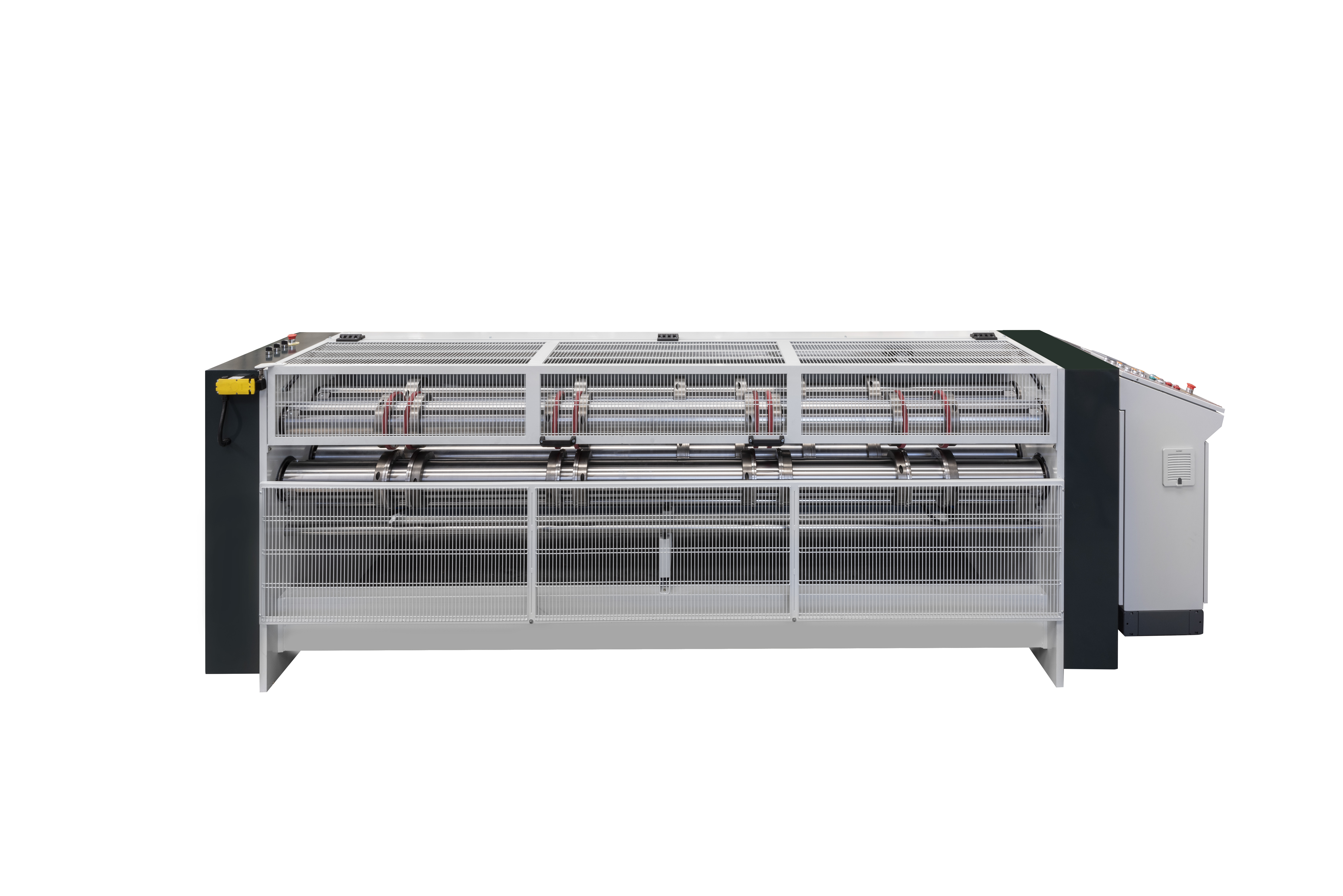

The machine is equipped with air-expansion shafts for a quick setting. Besides the position of the creasing and slotting tools is constantly displayed on a screen for a prompt and accurate position control.

Through the touch-screen control panel it is possible to adjust the following parameters: working speed, number of manufactured pieces, number of pieces to produce, thickness of the cardboard to be worked, automatic closing and opening of expansion shafts, machine start-up, machine stop, machine alarms

Size 2800 - 3300mm
Rapid setup-times
Direct-drive technology

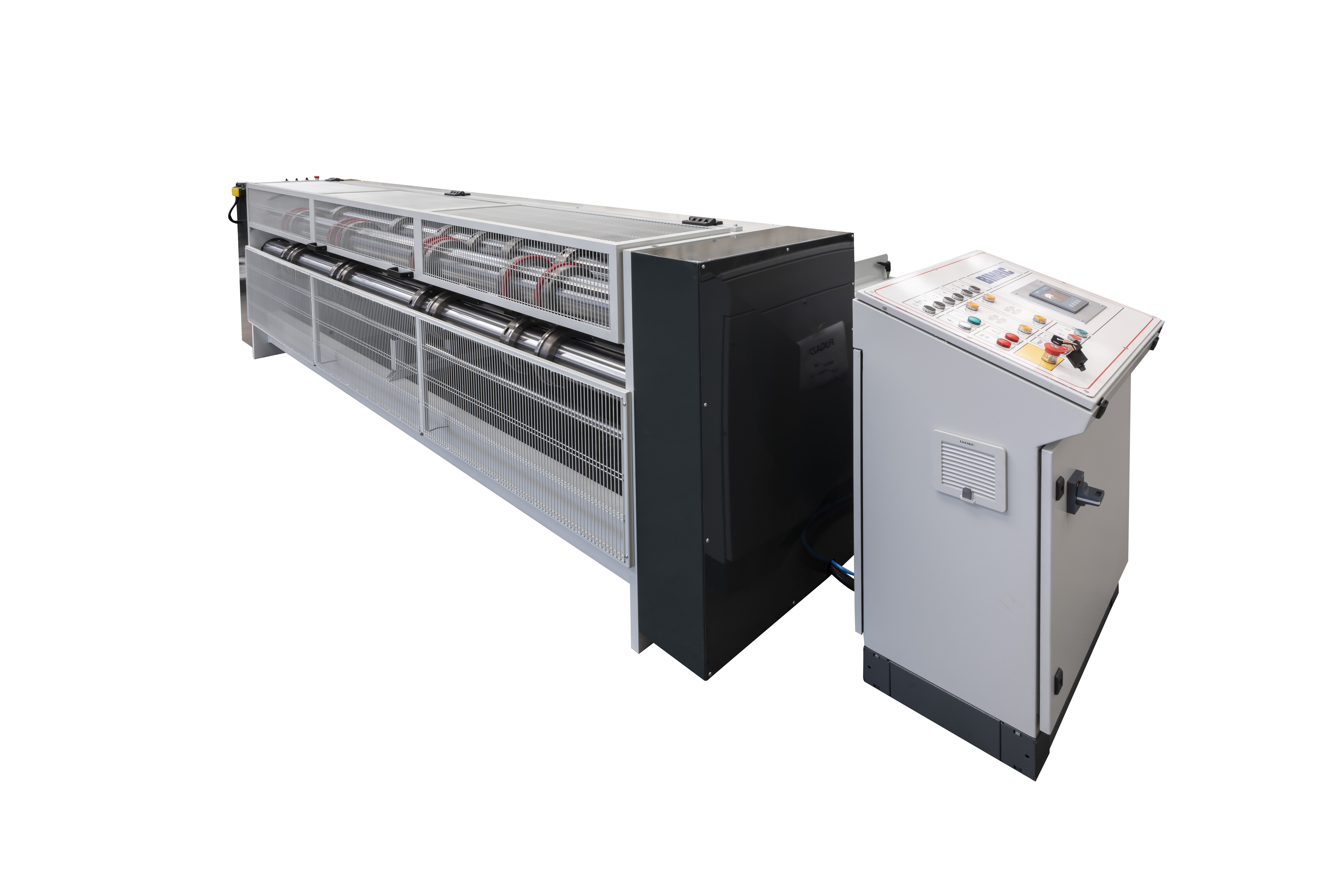

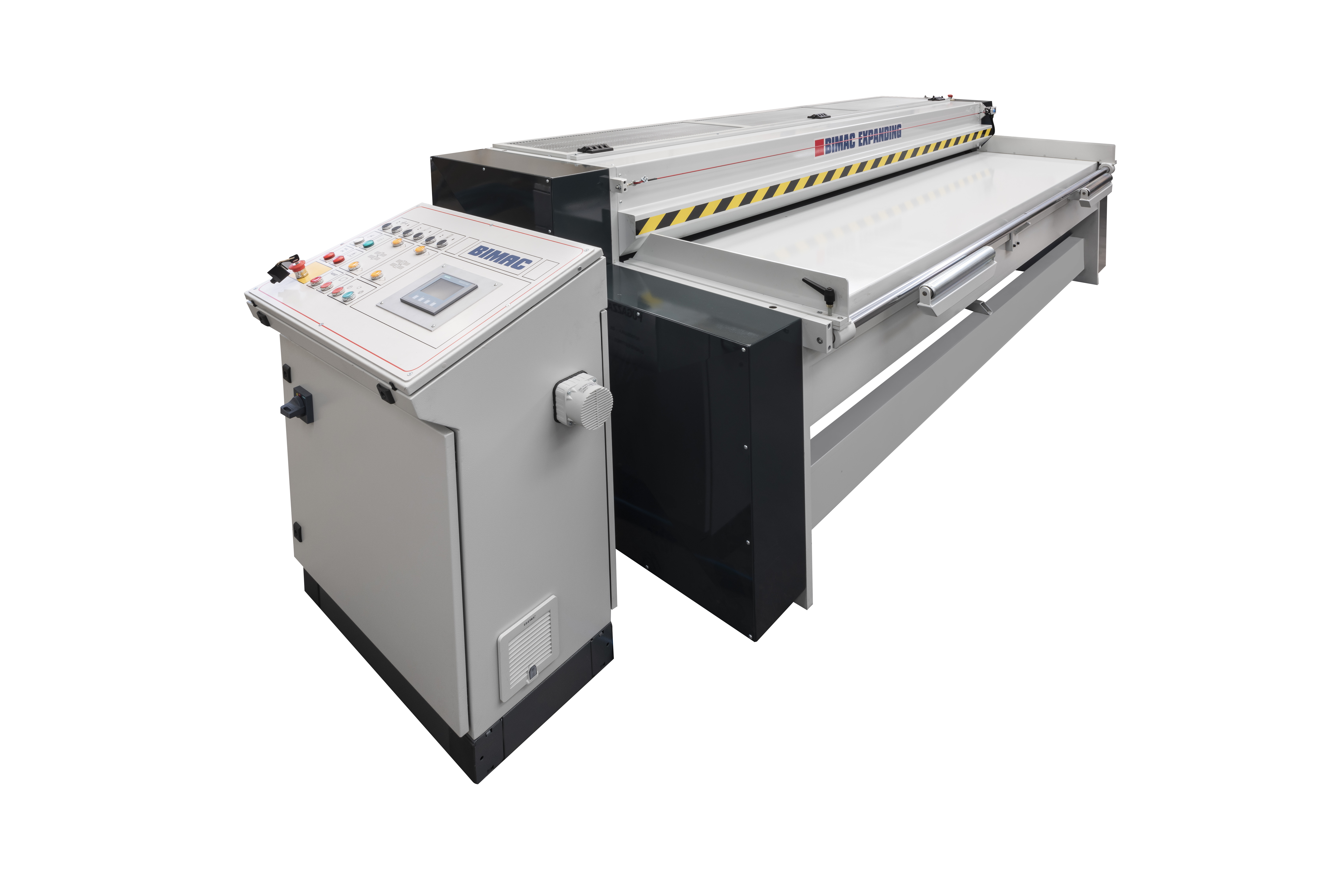

Touch-screen computer control panel
"Star-Feed" vacuum lead edge feeder
Modular airshafts
Slitting/Creasing Heads are useable on all shafts
Power transmission via toothed belt
Low maintenance / No lubrication required
Automatic feed roll adjustment based on sheet thickness
Silver chromium coated shafts
Corrugated thickness sensor
Digital display for laser point setting
Automatic thickness gauge
Laser point measuring system for rapid setup
8 pairs of creasing heads (heads are split and can be used on upper or lower shafts)
5 pairs of slitting heads (heads are split and can be used on upper orlower shafts)
Options
Slit score-perforating heads

Download brochure

You should also read:

Bimac Expanding with Feeder

BIMAC EXPANDING FEEDER

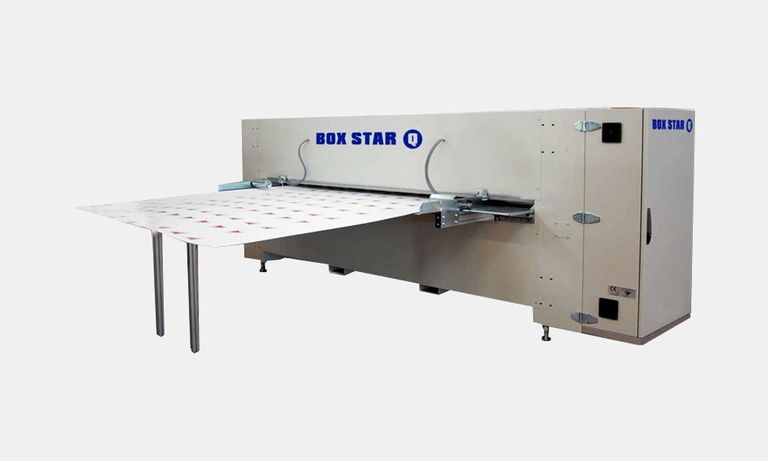

Bimac Box Star Q macchina per la trasformazione del cartone ondulato
